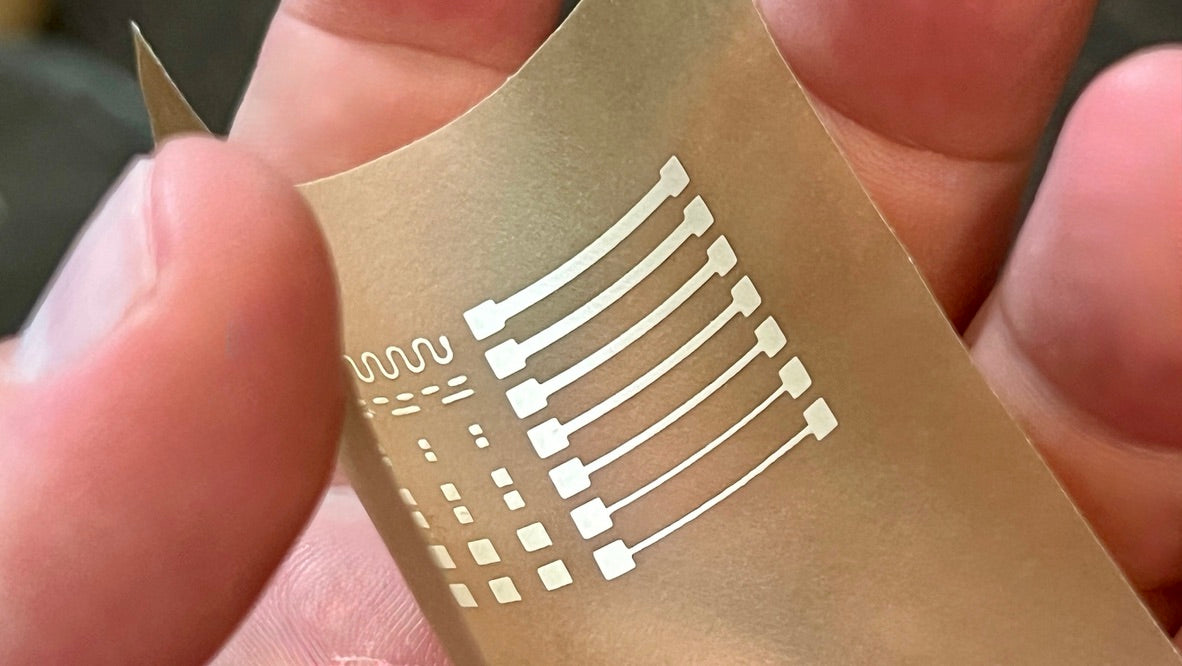

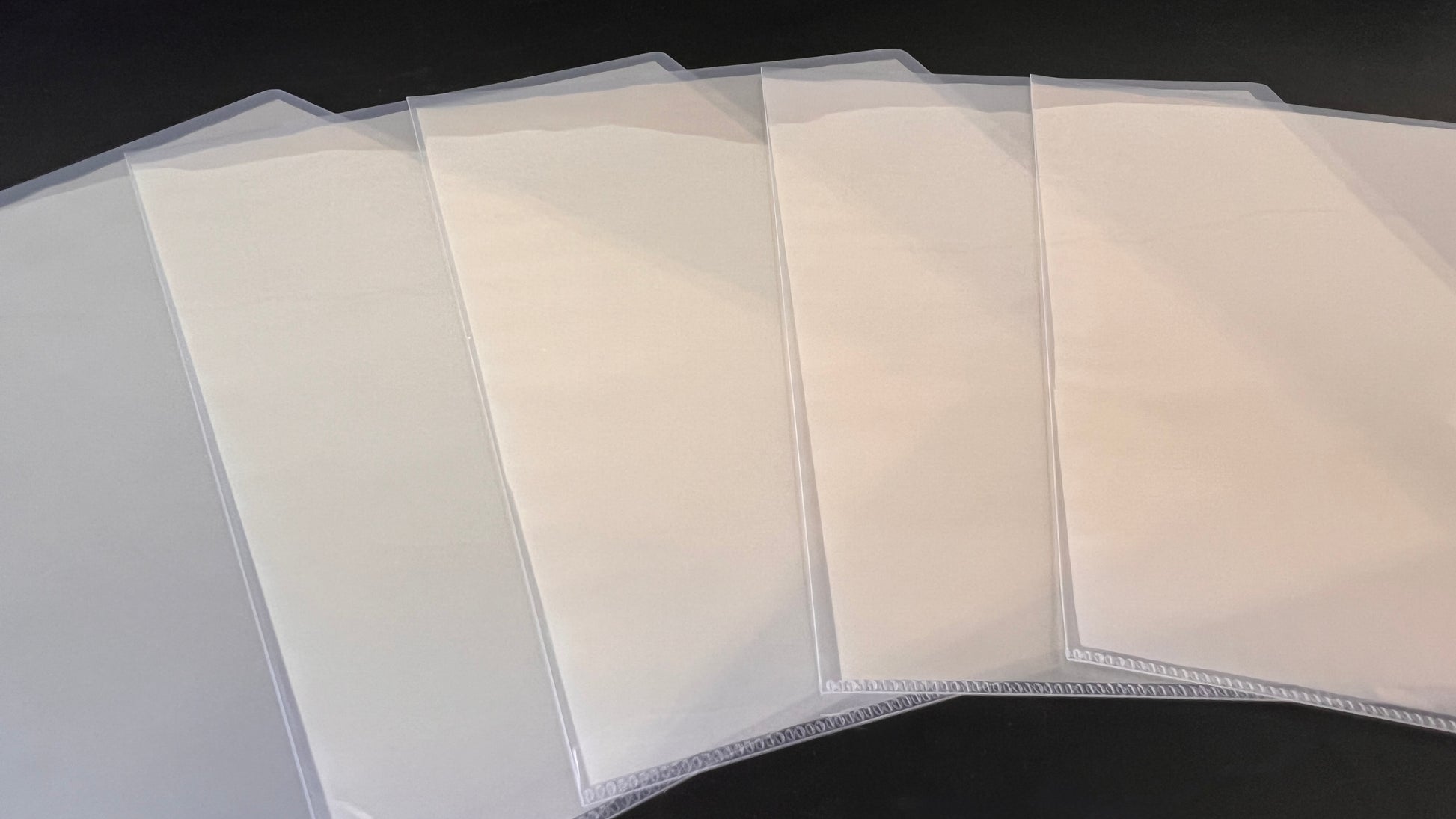

NanoPaper™ Flexible Electronics Substrate — 5 x A4 Sheets

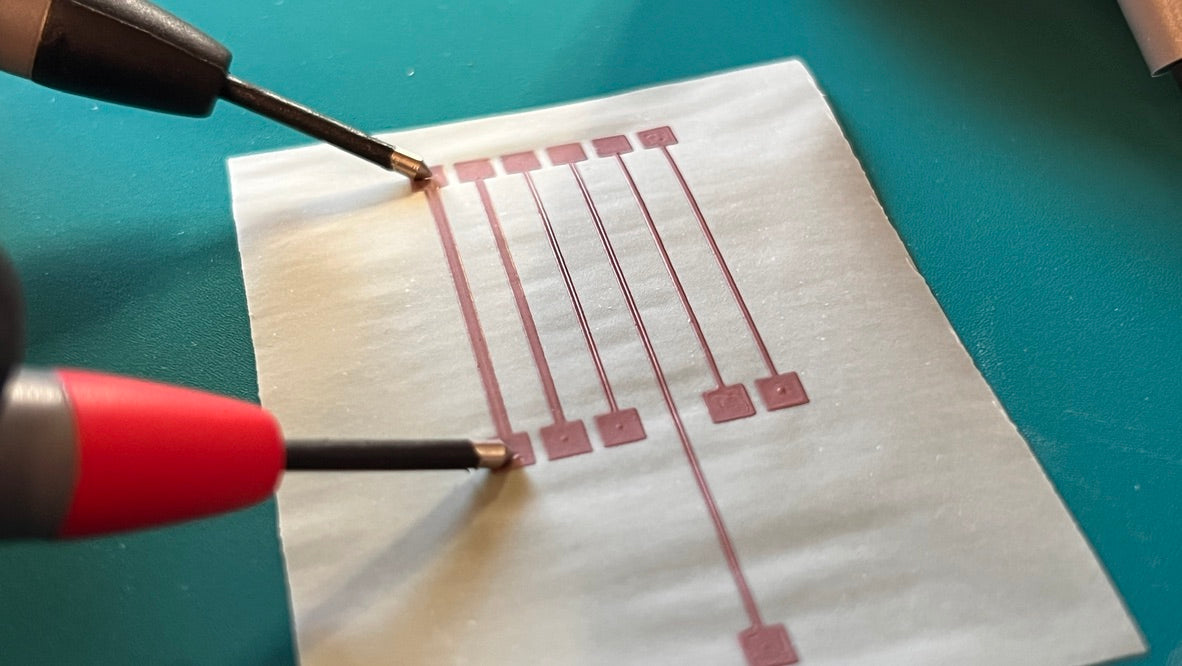

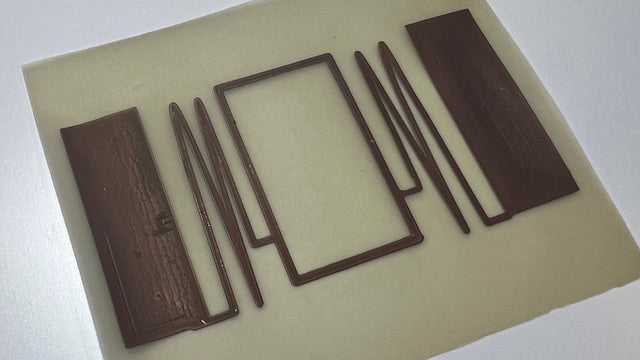

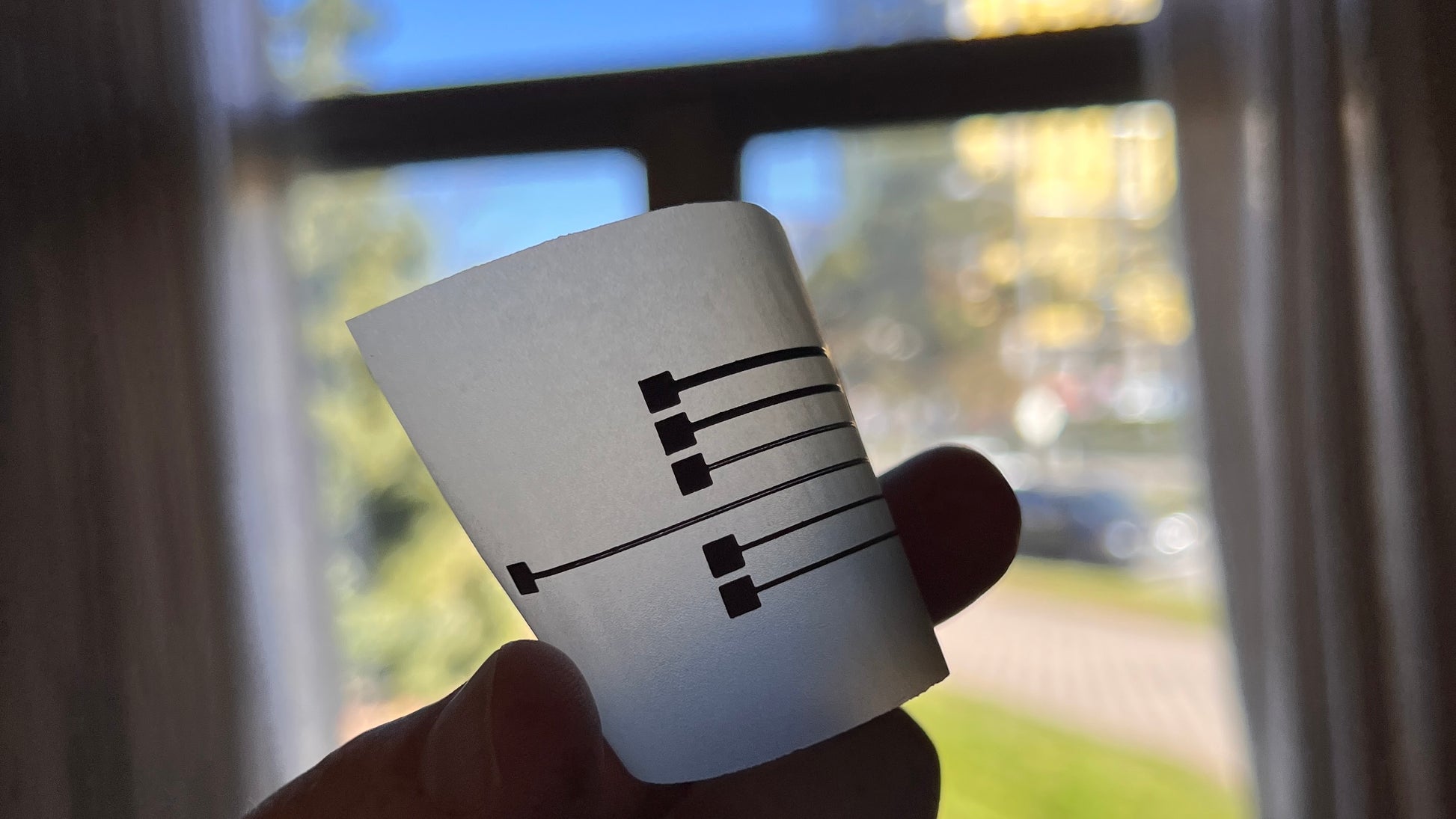

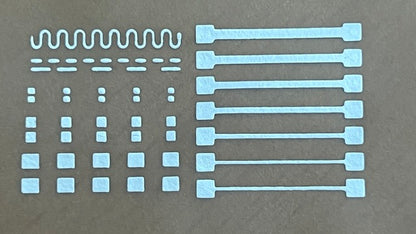

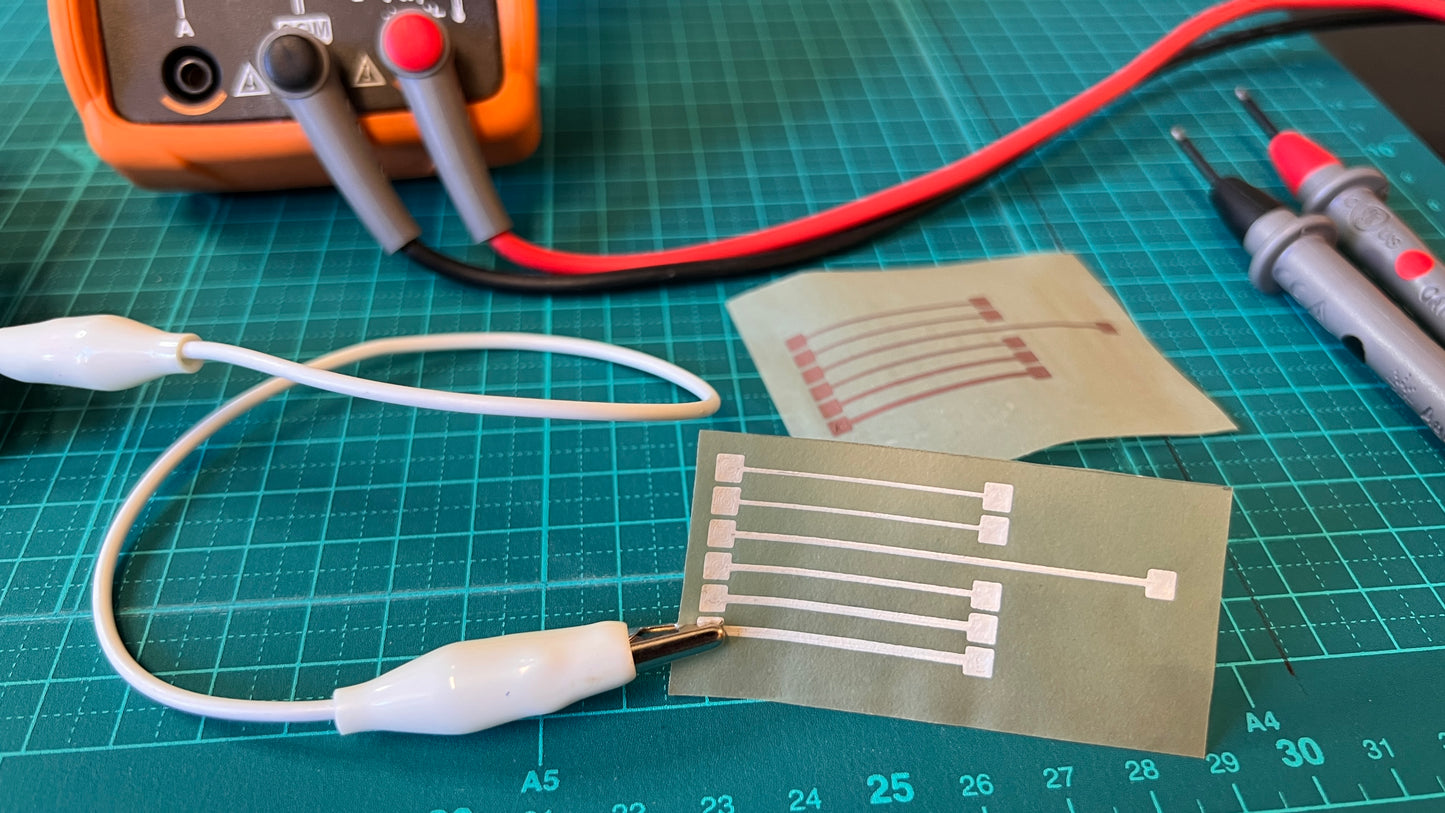

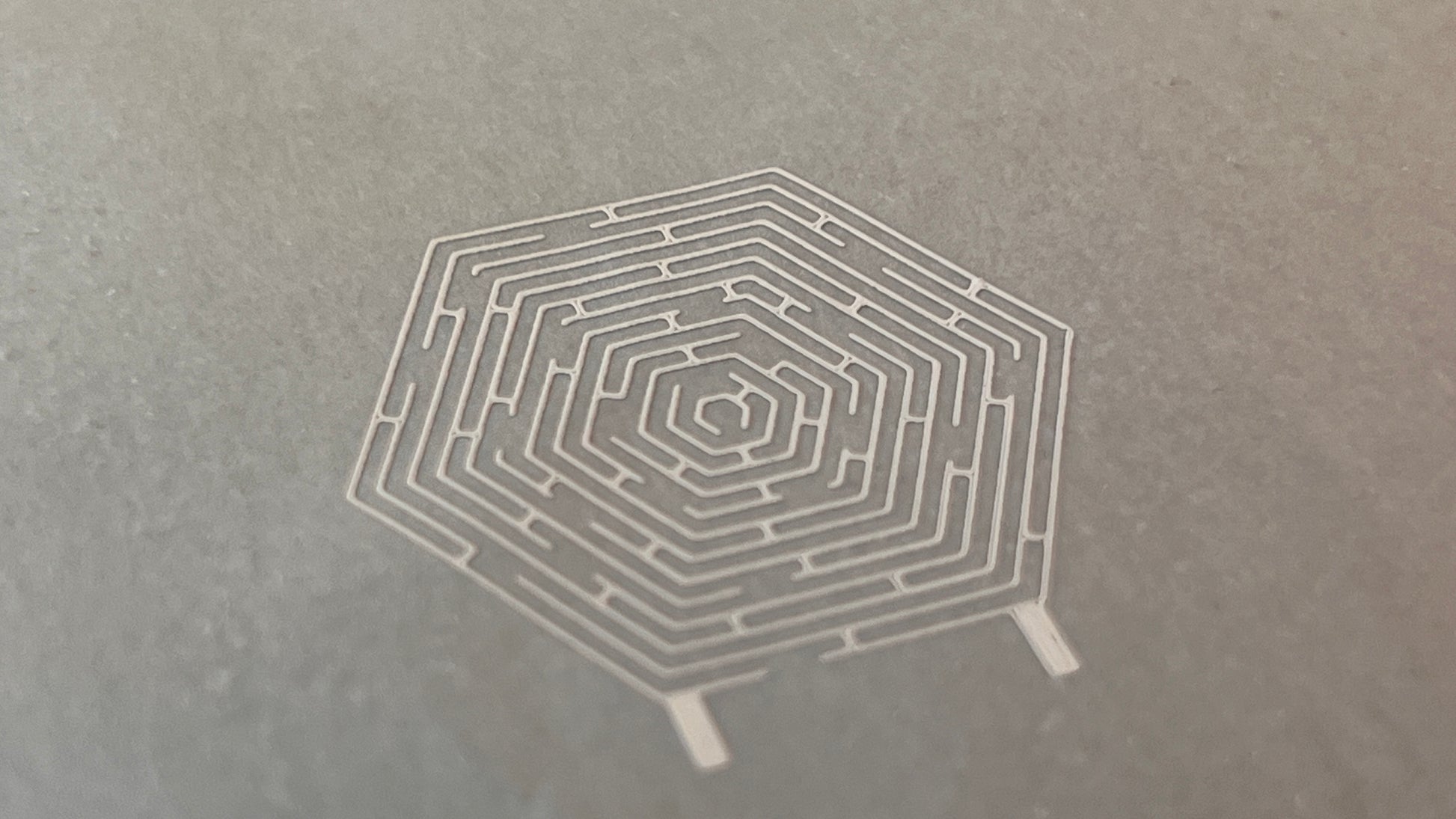

Tangho NanoPaper™ is a bio-based cellulose nanofiber film substrate engineered for printed and flexible electronics prototyping, evaluation, and research. It provides a smooth, electronics-ready surface, strong handling performance, and validated thermal tolerance for common cure profiles in a standard A4 format that fits benchtop printers, ovens, and lab workflows. NanoPaper is suitable for work on printed sensors, antennas, RFID/NFC structures, heaters, interconnects, and related flexible electronic devices.

Core specifications

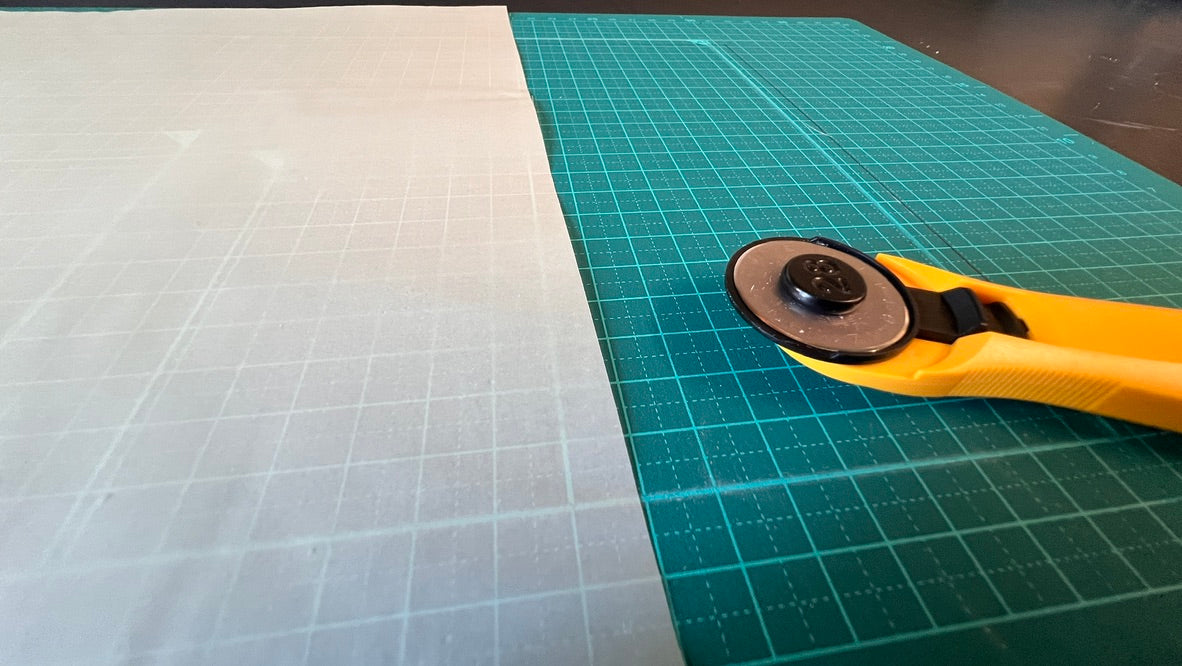

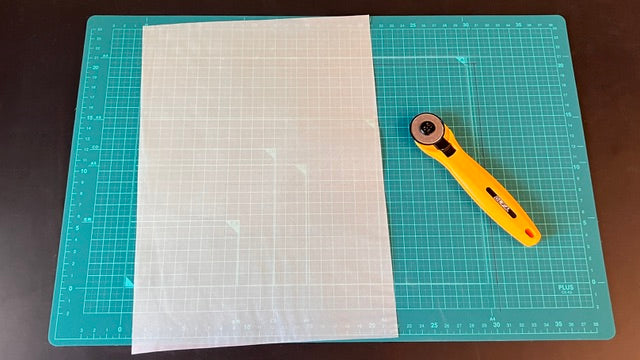

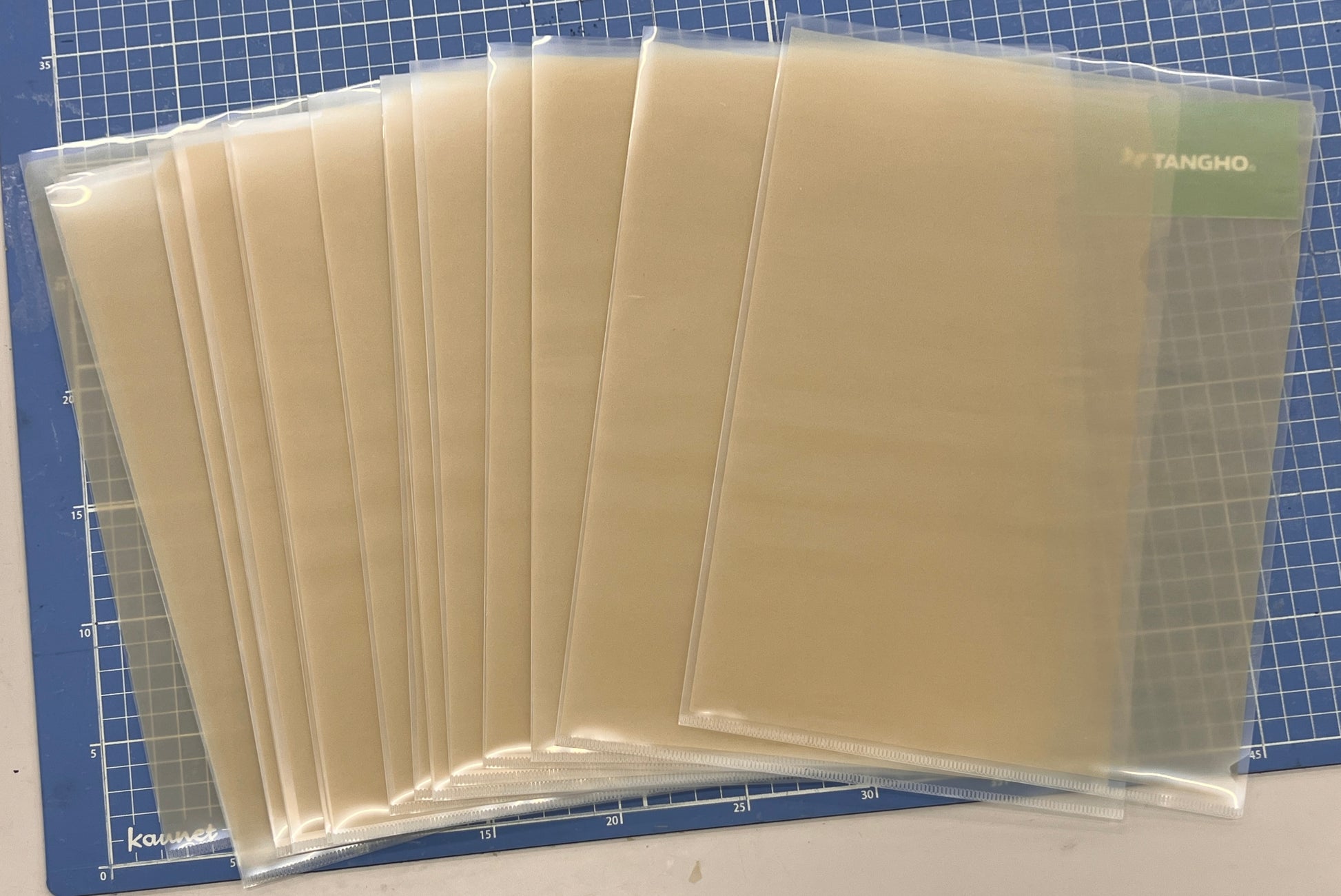

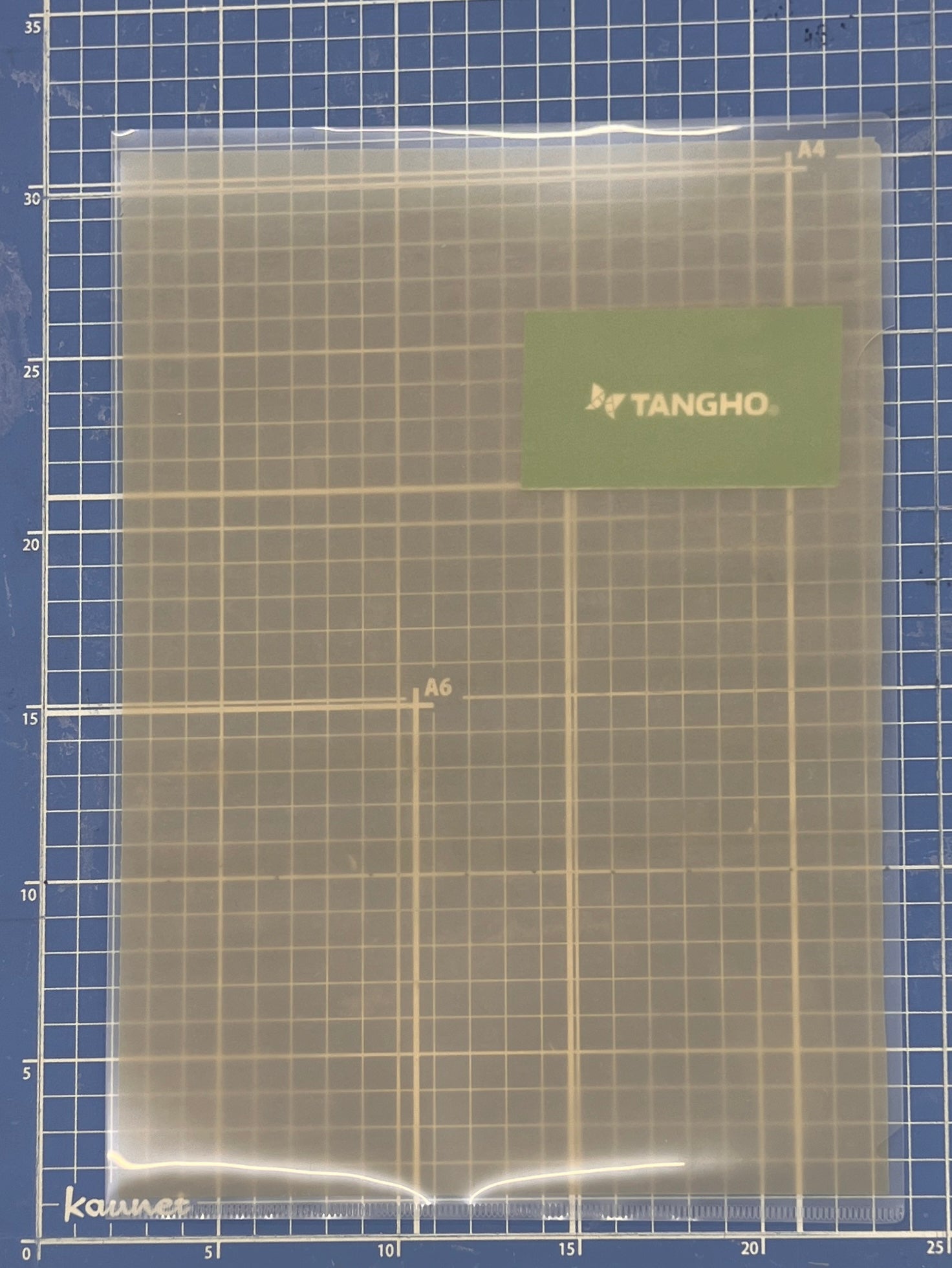

• Format: 5 A4 sheets, 210 × 297 mm
• Material: natural cellulose nanofibers only
• 50 µm grade: 50–55 g/m² basis weight, 2.1 µm Ra surface roughness
• 30 µm grade: 30–35 g/m² basis weight, 1.2 µm Ra surface roughness
• Appearance: translucent off-white / yellow, matte low-gloss finish
• Thermal guidance: safe curing guidance listed at under 30 minutes at 150 °C, under 10 minutes at 200 °C, and under 2 minutes at 220 °C, with degradation onset around 275 °C

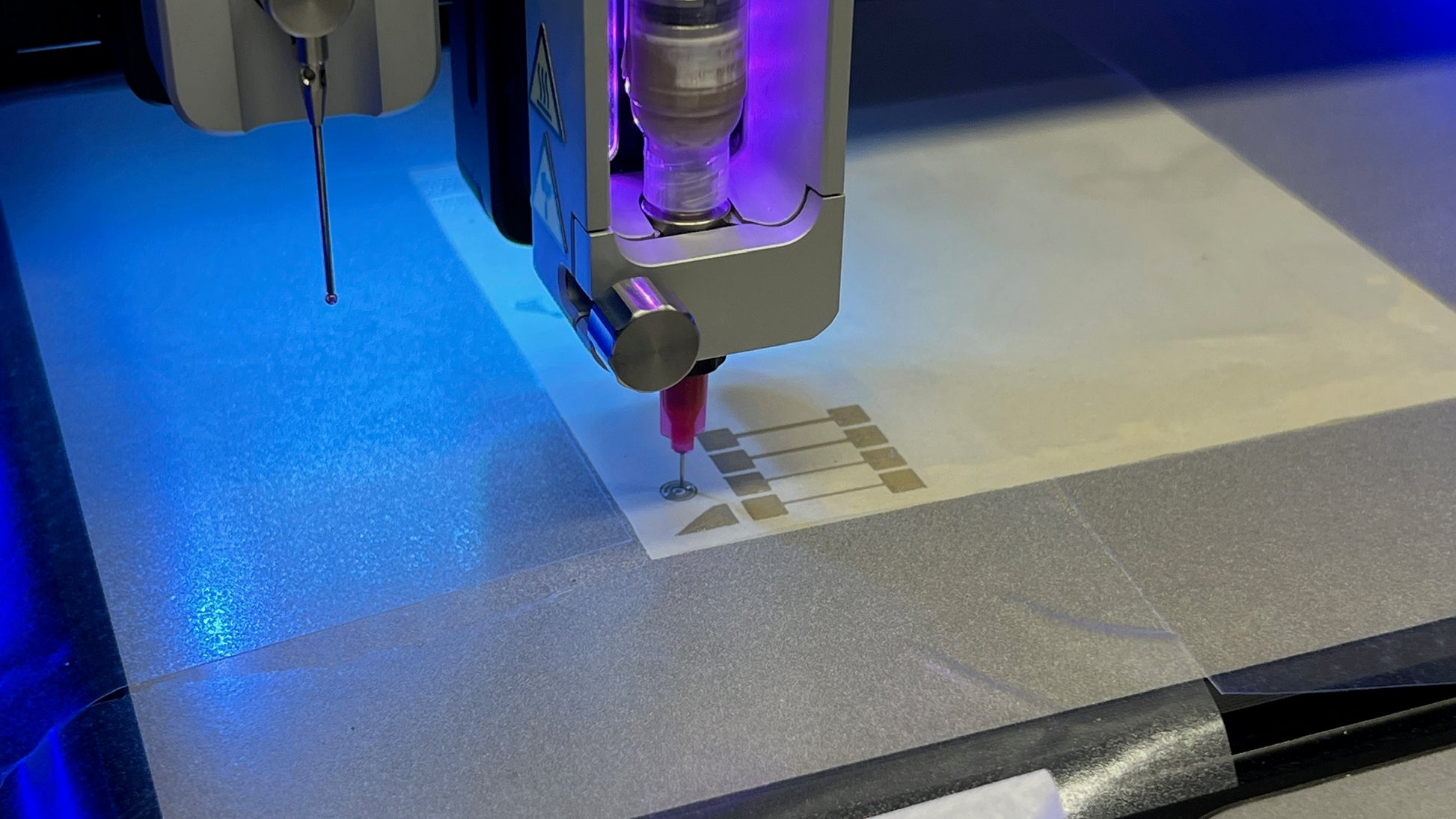

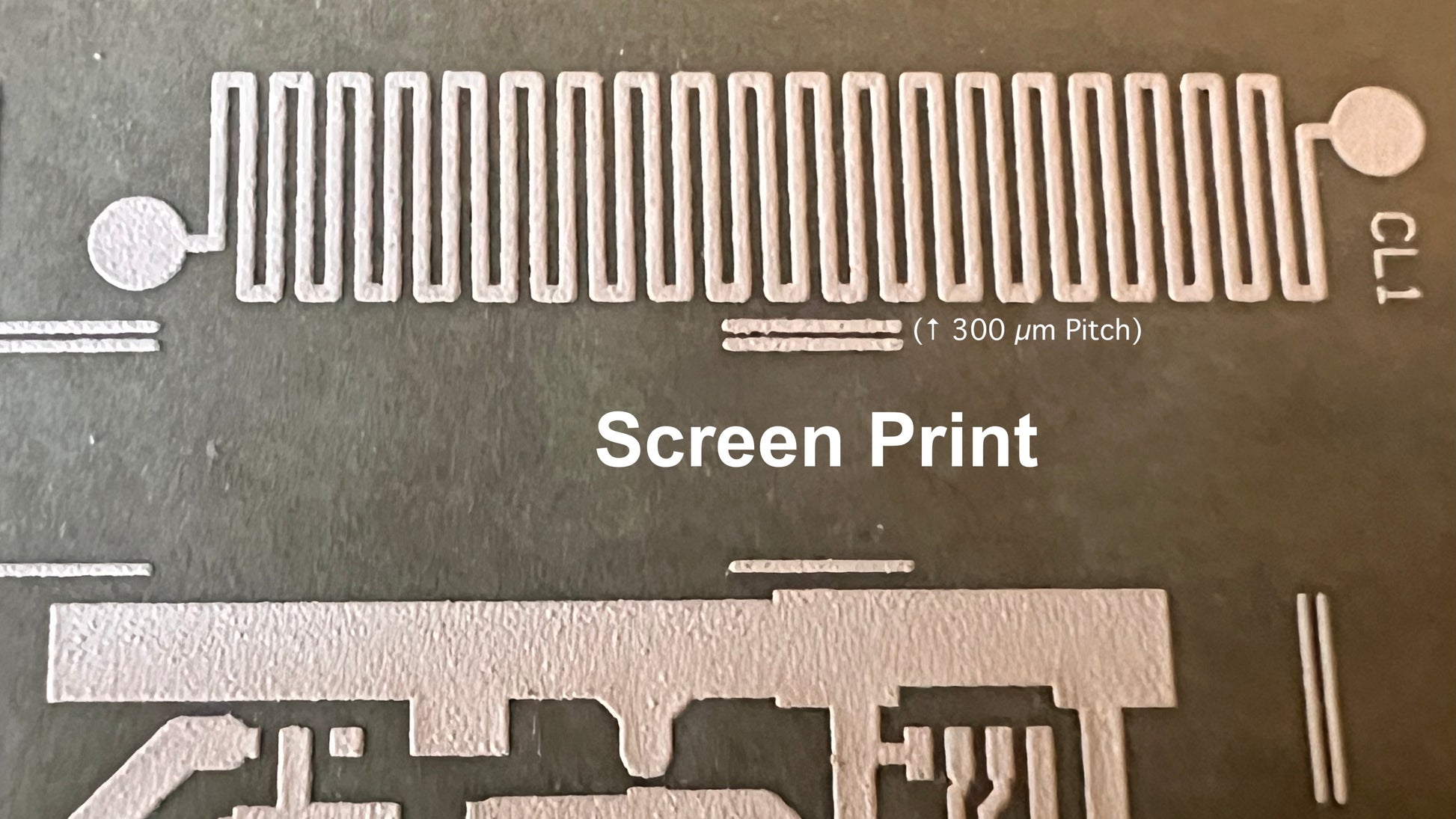

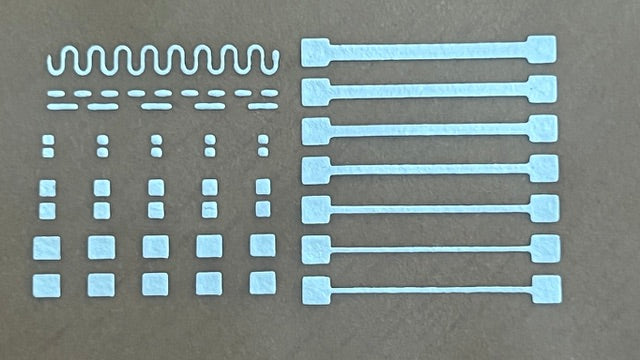

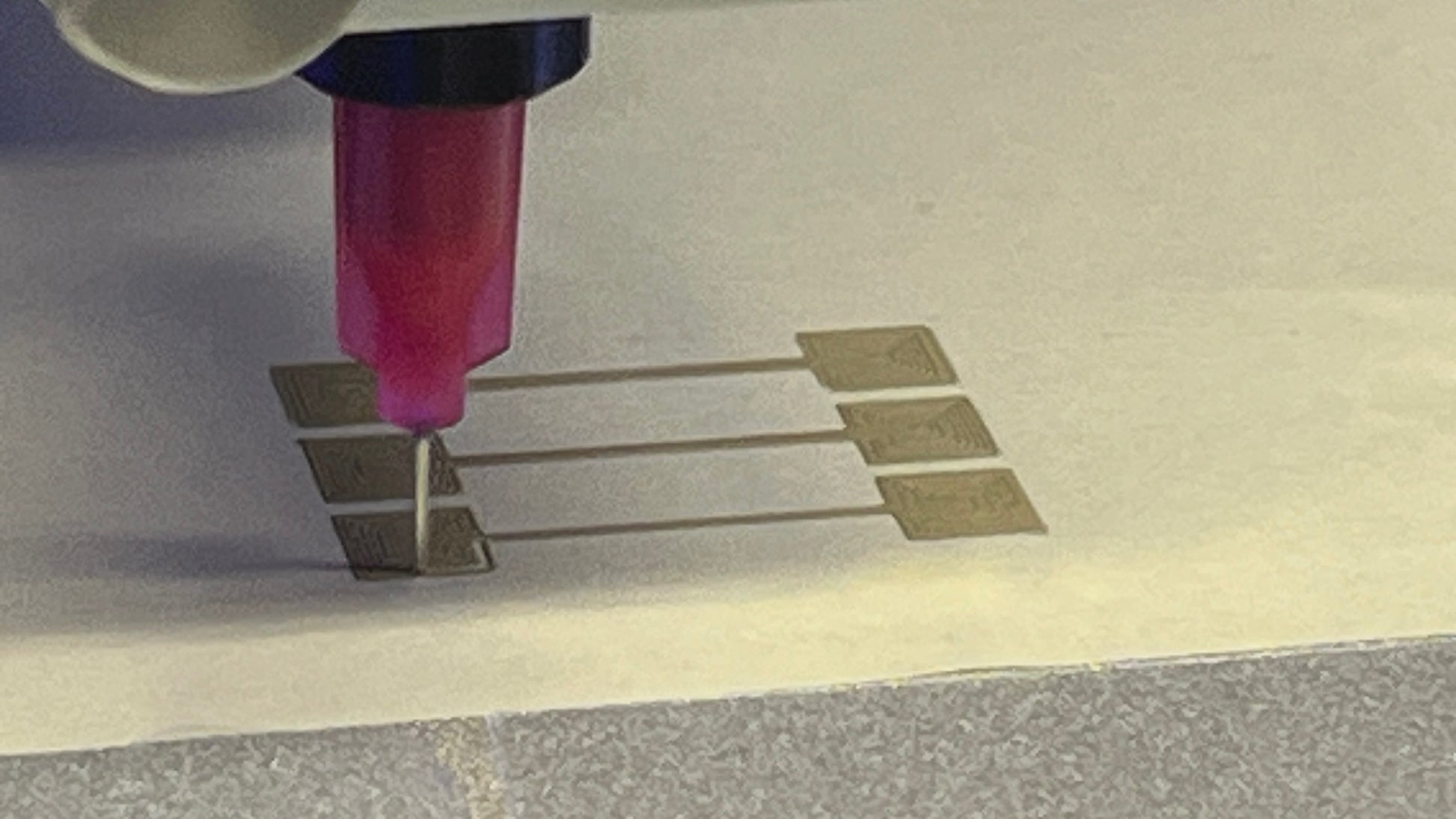

• Printing compatibility: suitable for screen, inkjet, and aerosol/dispense (DIW) evaluation workflows; qualify with your ink and process conditions

Thickness options

• 50 µm — Recommended
• 30 µm

Which thickness should I start with?

For most first-time evaluations, we recommend 50 µm. It offers the best all-around balance of robustness, handling, and process compatibility for general printed-electronics development. The 30 µm option remains available for thinner constructions where lower caliper is a specific requirement.

Technical documents

• View Technical Data Sheet — 50 µm
• View Technical Data Sheet — 30 µm
• View Handling, Storage, and Thermal Processing Guide

For first trials, use the lowest curing temperature and shortest dwell that achieve the required result. Pre-dry when moisture pickup is suspected, support sheets flat during elevated-temperature curing, and allow ambient reconditioning after higher-temperature annealing before final flexibility assessment.

*Looking for a different format or rolls? Contact us!
